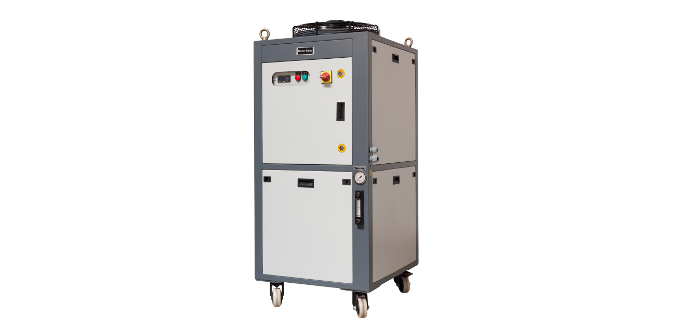

Spindle Chiller- I MIN

Spindles are important components of most industrial or small-scale machinery and are extremely sensitive to heat. As the machine at hand is in use, the temperature of the spindles rises, causing the machinery to malfunction. In order to avoid this possibility, it is important to maintain the temperature of the spindles within specified limits, ensuring the machine tool’s smooth operation. Our Spindle Chiller helps achieve these temperatures by re-circulating machine-compatible coolant through a cooling circuit within the cooler. They use the eco-friendly refrigerant R134a and contain inbuilt coolant tanks and re-circulating pumps. These chiller controllers are compact, mobile and based on microprocessors for their functionality,

Spindle Chillers Specifications

Specifications

• Cooling capacity range : 1.75 kW to 35 kW
• Fluid : Soft Water / water + glycol solution
• Refrigerant : R134a
• Operating ambient temperature range : +10 to + 50C
• Best fluid outlet temperature : 15degc, At ambient : 35degc & ∆T : 5 Deg C
• Condenser Type : Air-Cooled, Fin & Tube
• Evaporator Type : Coil in tank / Brazed Plate Heat Exchanger
• Operating environment : Indoor / Out door - Shelter from rain, dust, insects, humidity, sunlight
• Power supply : 1 PH / 3 PH, 220V / 415 V, AC, 50/60 HZ
• MOC of wetted parts : SS 202 / 304 / 316 / CU
• Fluid loop : Open loop with media tank in the circuit
• Noise level : < 85 db
• Life expectancy : 10-15 years

Design Inputs from Customer

Required cooling capacity in kW

Required / rated flow rate of cooling liquid

Max liquid leaving temperature from cooling unit, at max ambient temp.

Increase in liquid temperature at outlet of inverter

Operating ambient temperature range (+/-)

Installation site environmental conditions

Power supply - voltage, frequency, phase.

Electrical control logic

Type of configuration for the cooling system

Acceptance test, applicable standards and certifications
